I2C Water Pressure Sensor 3.3V Power Supply And High Accuracy 0.5%FS

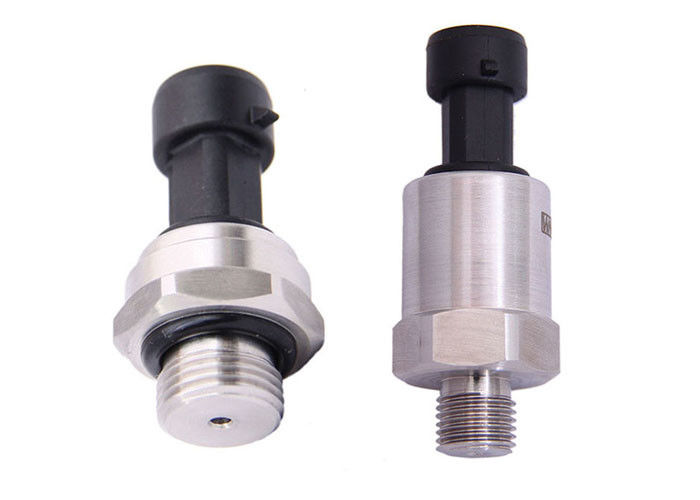

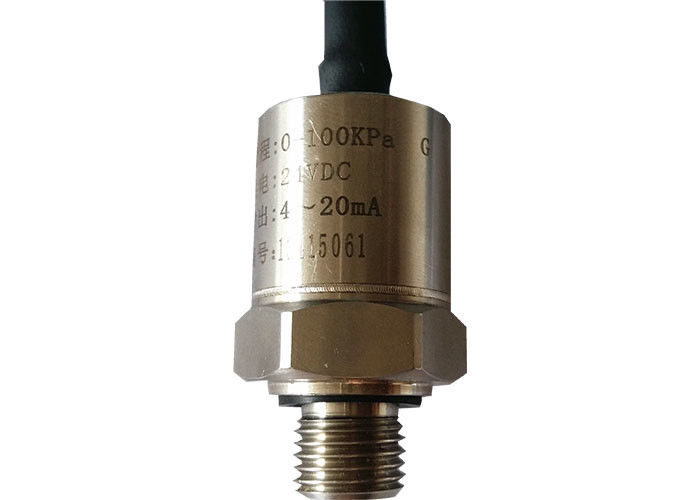

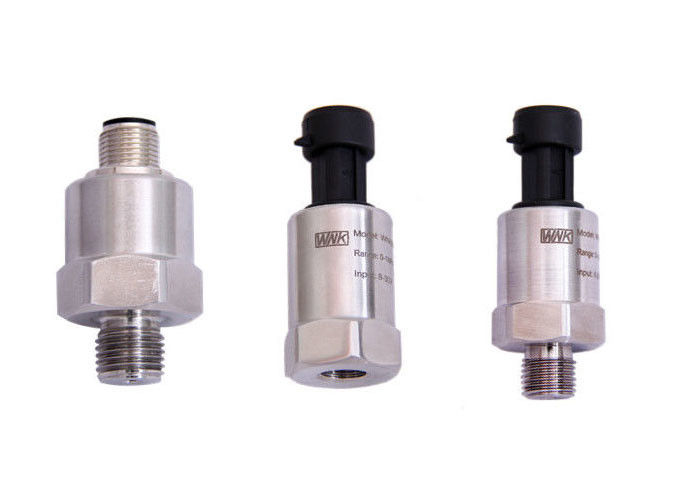

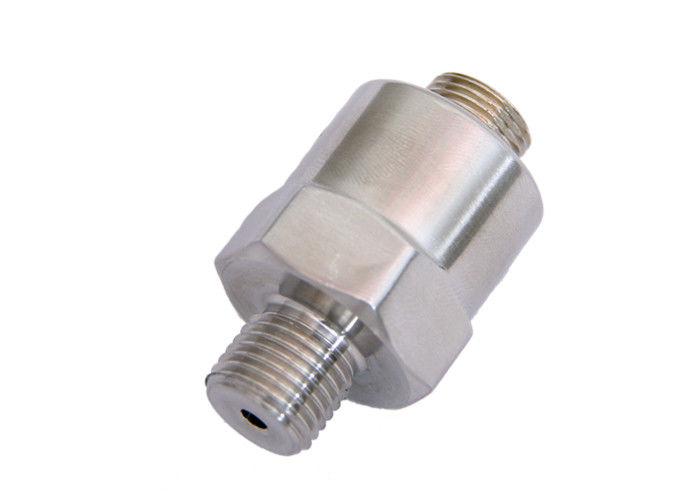

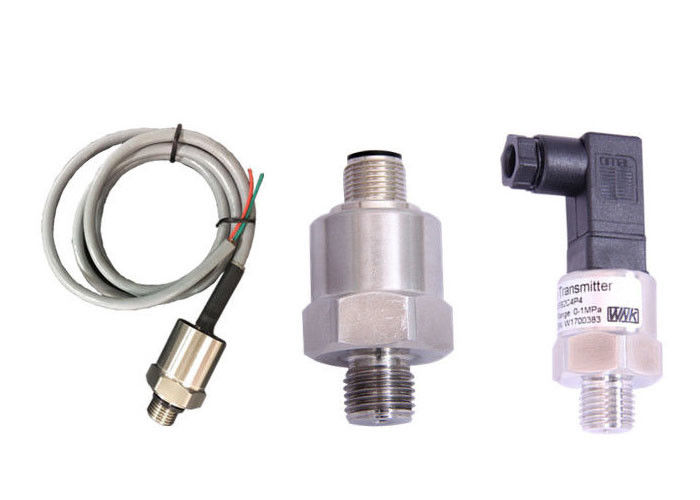

WNK81MA pressure transmitter is a high stable pressure transmitter by using specific ASIC signal conditioning chip and high performance SS316L diaphragm diffused silicon pressure sensor. The internal specific ASIC integrated circuit transforms milivolt signal to standard voltage, current or frequancy signal. It can easily connect with PC interface card, controlling instruments, smart gauges or PLC. It is compact designed, light and stainless steel sealing structure, which enable it capability of working in corrosive environment.
We also have WNK80MA ceramic capacitive pressure sensor. WNK80MA and WNK81MA both have outputs of 4~20mA, SPI, I2C, 0.2-2.9v, 0.5-4.5v, 0-5v and other outputs. With small size, stainless steel housing and high accuracy, WNK80MA and WNK81MA are widely applied to air compressor, HVAC, water and gas management system, smart city, and etc.
Features:
• Ceramic capacitive and diffused silicon sensors are available;
• Accuracy choices ±0.5%FS, ±1%FS, ±2%FS;
• Stainless steel 304,SS316 and brass housing;
• 0.5…4.5V, 4…20mA, 1...5V and 0...10V analog output or I2C and SPI digital output;
• Fast respond, no hysteresis ;
• Various process thread or other customization port acceptable;
• Electrical connectors including small DIN43650, M12, Parkard and others
• OEM, ODM and customization
Applications:
• Pressure measurement of gas, vapor or liquid in various areas;
• Liquid level, volume or mass measurement;
• Integrated in a variety of user-defined solutions;
• Smart water and gas management system, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
Performances:
| Input |
| Pressure type |
Gauge pressure, sealing pressure, absolute pressure |
| Measuring range |
-0.1~60MPa |
| Output |
| Analog |
0.5…4.5V, 4…20mA, 1...5V, 0...10V |
| Analog |
I2C, SPI |
| Accuracy |
| 0.2% |
Linearity, hysteresis, repetitiveness:＜0.2% sensor full range |
| 0.5% |
Linearity, hysteresis, repetitiveness:＜0.5% sensor full range |
| Overload |
| 2.5X pressure sensor full scale |
| Housing Info. |
| Housing Material |
SS 304, Cu, Al |
| Wetting Material |
SS316L |
| Ingress Protection |
IP67 |
Power Supply
| Supply voltage |
5V 24VDCregulated power supply, |
| Supply voltage effect |
5V supply voltage effect: min.3V/max.5.5V
●For 0.5…4.5V output sensor, voltage has no effect for linearity and temperature compensation, voltage is proportional to LRV and FRV.
●For I2C and SPI digital output sensor, voltage has no effect for linearity, LRV, URV and compensation temperature.
24V supply power effect: min.9V/max30V
●For 4…20mA current output sensor, voltage has no effect for linearity, LRV, URV and compensation temperature.
|
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
