Low Cost 4-20ma Ceramic Water Air Compressor Pressure Sensor
Product Description
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Product Spec
| Applicable media |
Liquid, Gas, Steam |
| Pressure range |
0-15Mpa |
| Cell |
Ceramic Capacitive Pressure Sensor |
| Pressure measurement |
Gauge Pressure, AbsolutePressure, Sealing Pressure |
| Output |
4-20ma/0.5-4.5v/1-5v/0-5v/0-10v/I2C |
| Power supply |
24VDC/12VDC/5VDC/3.3V |
| Accuracy |
1%F.S. |
| Compensation temperature |
-20-85C |
| Working temperature |
-40-125C |
| Ambient temperature |
-40-125C |
| Temperature drift(zero) |
±0.15% F.S. (-20~85ºC) |
| Temperature drift(full range) |
±0.15% F.S. (-20~85ºC) |
| Electrical connection |
Parkard, Cable outlet, M12, mini DIN43650 |
| Mechanical connection |
G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation |
| Protection |
IP65 |
Application:
WNK80MA is solution for below applications:
Pressure measurement of gas, vapor or liquid in various areas;
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

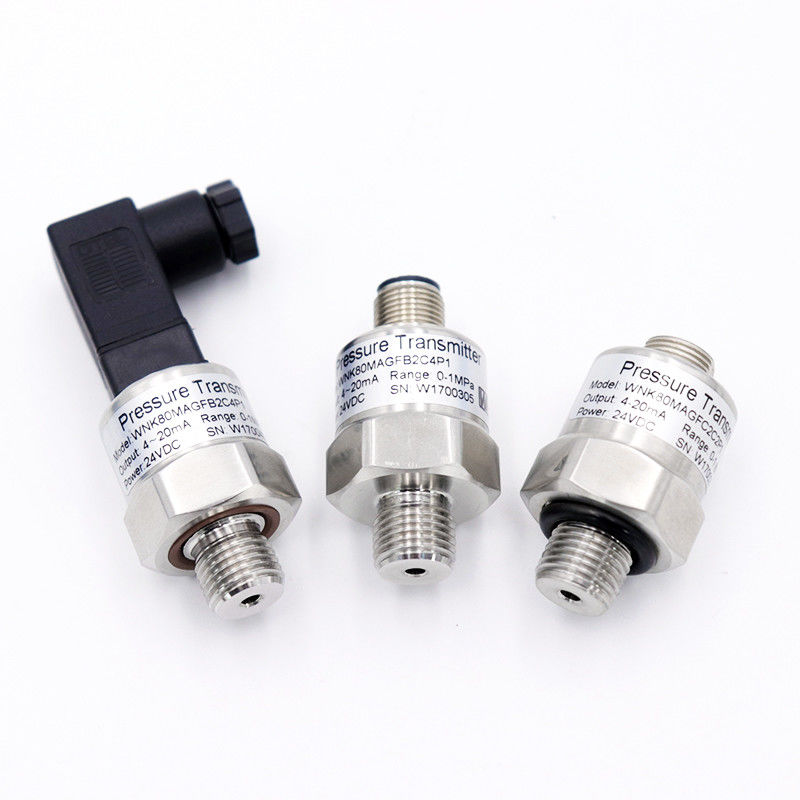

Product Show
About Us
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
