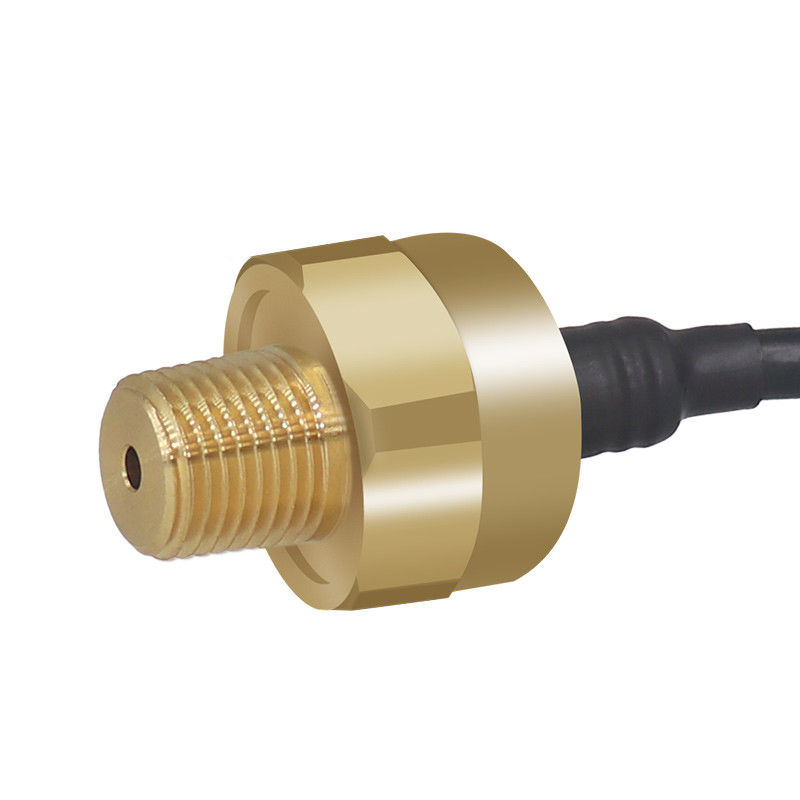

Brass Housing 1000Kpa Air Compressor Pressure Sensor Gauge Measurement

Brass Housing 1000Kpa Air Compressor Pressure Sensor Gauge Measurement

1000Kpa air compressor pressure sensor

Brass housing compressor pressure sensor

1000Kpa compressed air pressure sensor

Place of Origin:

China

Brand Name:

WNK

Certification:

ISO, CE

Model Number:

WNK83MA

Contact Us
Request A Quote
Product Details
Accuracy:
1%F.S
Output:
0.5-4.5V
Pressure Range:
0-1000Kpa
Power Supply:
4.75-5.25VDC
Work Temperature:
-20~70°C
Measured Media:
Liquid, Gas, Steam
Housing Material:
Brass
Electrical Connection:
Cable Outlet
Highlight:

1000Kpa air compressor pressure sensor

,

Brass housing compressor pressure sensor

,

1000Kpa compressed air pressure sensor

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiation
Packaging Details
Standard export carton box or according to your requirement
Delivery Time
5-7 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
5000 Piece/Pieces per Month
Product Description

HVAC Air Compressor Water Air Pressure Sensor With 0.5 - 4.5V Output



Parameter



Applicable media Liquid, gas, steam
Pressure range 0-1000Kpa
Pressure measurement Gauge pressure, sealing pressure
Output 0.5-4.5V
Power Supply 4.75-5.25VDC
Accuracy(lineraity, hysteresis, repeatability) 1%FS
Work temperature -20~70°C
Storage temperature -40~110°C
Temp drift(zero) ±0.15%FS(-20~70°C)
Temp drift(full range) ±0.15%FS(-20~85C)
Electrical connection Parkard, Cable Outlet
Mechanical connection 1/4NPT
Housing material Brass









Mechanical Dimension



Brass Housing 1000Kpa Air Compressor Pressure Sensor Gauge Measurement 0





Product Show

Brass Housing 1000Kpa Air Compressor Pressure Sensor Gauge Measurement 1Brass Housing 1000Kpa Air Compressor Pressure Sensor Gauge Measurement 2







Company Information



Brass Housing 1000Kpa Air Compressor Pressure Sensor Gauge Measurement 3


Factory


Brass Housing 1000Kpa Air Compressor Pressure Sensor Gauge Measurement 4




Exhibition


Brass Housing 1000Kpa Air Compressor Pressure Sensor Gauge Measurement 5





Our Certificate
Brass Housing 1000Kpa Air Compressor Pressure Sensor Gauge Measurement 6





Packing
Brass Housing 1000Kpa Air Compressor Pressure Sensor Gauge Measurement 7

FAQ


Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
