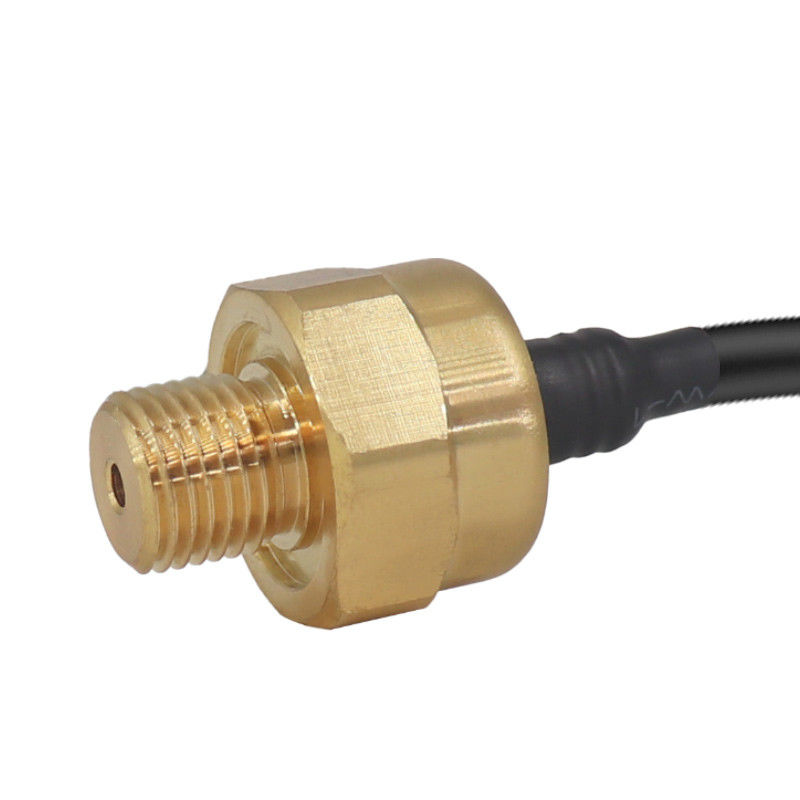

1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet

1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet

2MPa ceramic capacitive pressure sensor

1/4NPT ceramic capacitive pressure sensor

1/4NPT capacitive pressure transmitter

Place of Origin:

China

Brand Name:

WNK

Certification:

CE

Model Number:

WNK83mA

Contact Us
Request A Quote
1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet
1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet 1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet
Product Details
Pressure Range:
0-2MPa,0-20bar,0-2000kPa
Output:
0.5-4.5V DC
Power Supply:
4.75-5.25V DC
Material:
Brass
Process Connector:
1/4 NPT G1/4
Electrical Connector:
Cable Outlet/ Packard
Accuracy:
1%
Highlight:

2MPa ceramic capacitive pressure sensor

,

1/4NPT ceramic capacitive pressure sensor

,

1/4NPT capacitive pressure transmitter

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiation
Packaging Details
Each piece into individual carton with foam protection,Or as per client's request
Delivery Time
8-10 working days
Payment Terms
D/A, D/P, T/T, Western Union, Paypal
Supply Ability
2000 pcs per week
RELATED PRODUCTS
Good price SS304 Housing Materials Water Pressure Sensor for Stable Pressure Measurement 0-20bar Range online

SS304 Housing Materials Water Pressure Sensor for Stable Pressure Measurement 0-20bar Range

Get Best Price
Good price Liquid Pressure Monitoring System Water Pressure Sensor with Mechanical Connection M6*1 online

Liquid Pressure Monitoring System Water Pressure Sensor with Mechanical Connection M6*1

Get Best Price
Good price IP68 Protection 5VDC Oil Pressure Sensor for Oil and Gas Applications online

IP68 Protection 5VDC Oil Pressure Sensor for Oil and Gas Applications

Get Best Price
Good price 5VDC Power Supply Pressure Sensor for Liquid Media in Industrial Control Systems online

5VDC Power Supply Pressure Sensor for Liquid Media in Industrial Control Systems

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

Customized Packard Cable Outlet 0.5 - 4.5V DC Output Water Pressure Sensor​



Mini brass pressure sensor with low cost unit price $6 USD,suitable for air oil water,ready to ship now.



Applicable media Liquid, gas and steam
Pressure range 0-2MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Working temperature -20~70ºC
Ambient temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable Outlet/ Packard
Mechanical connection 1/4 NPT  G1/4
Housing material Brass



1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet 01/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet 1



Certification

1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet 2



1/4NPT 2MPa Ceramic Capacitive Pressure Sensor With Cable Outlet 3

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
