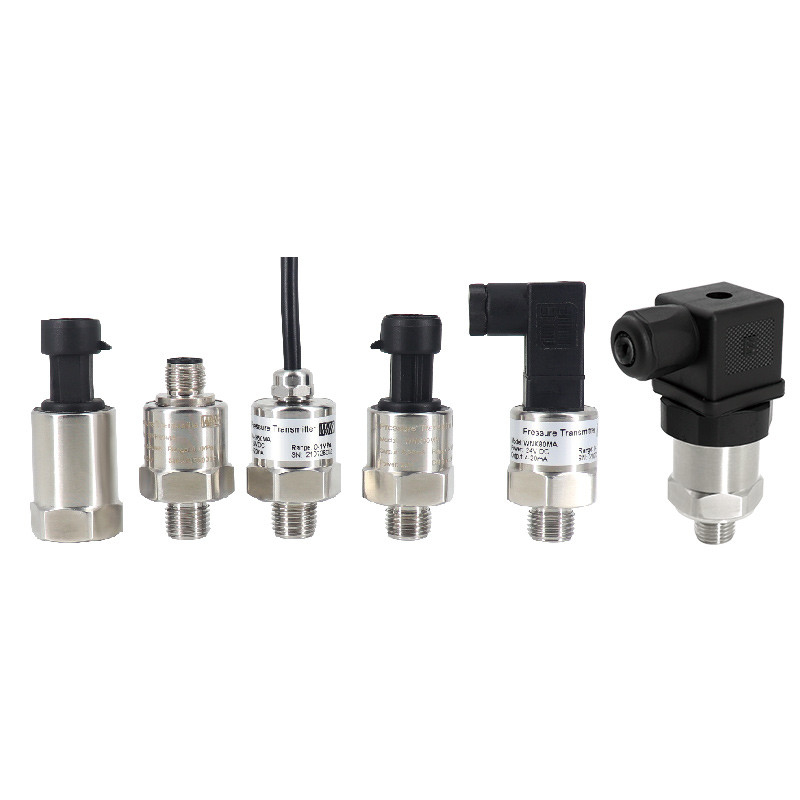

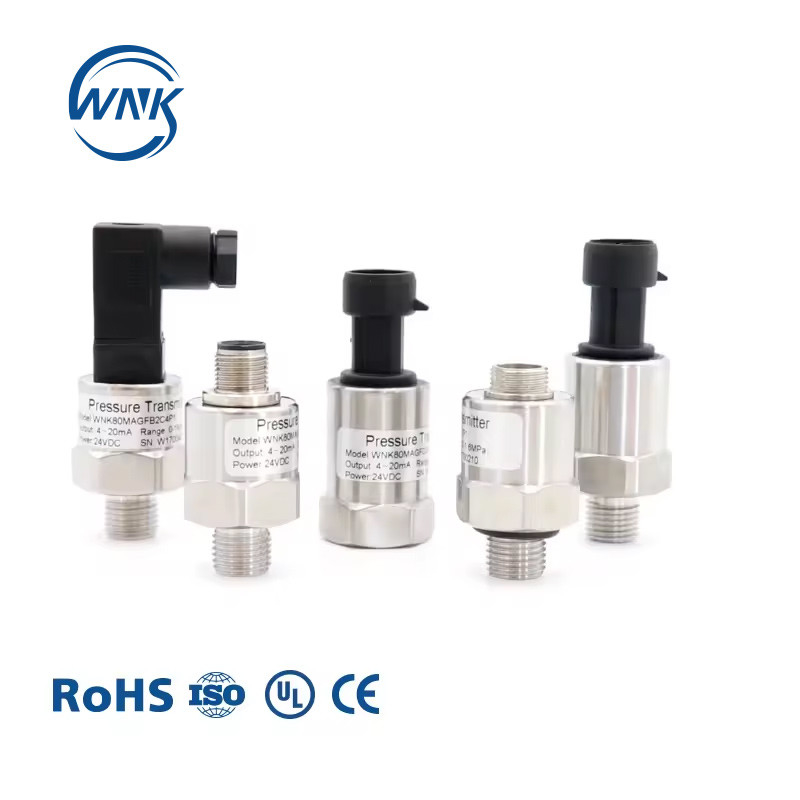

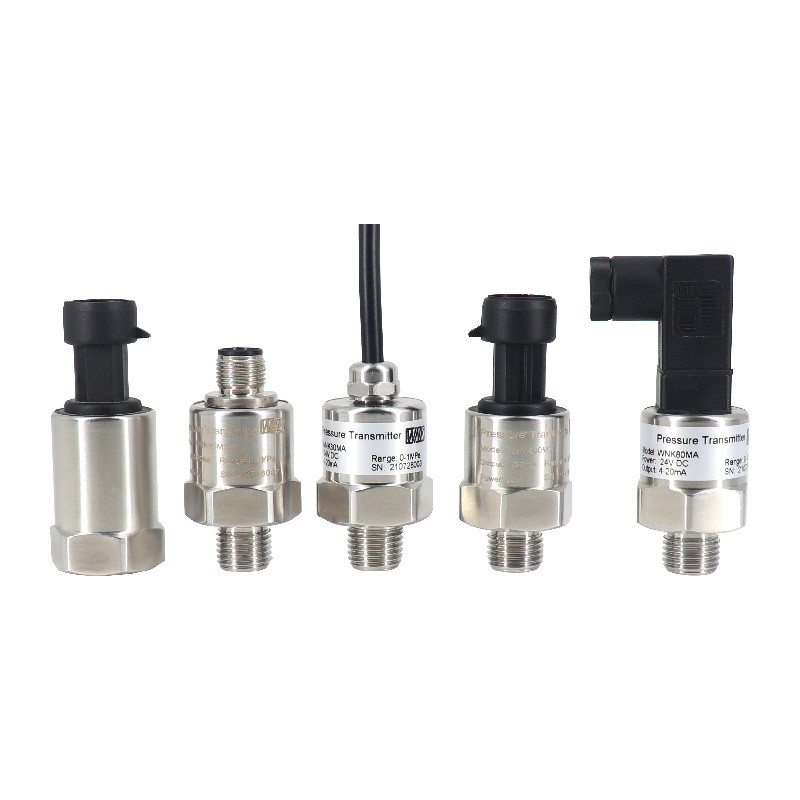

0.5%FS Accuracy Water Pressure Transmitter With 304SS/316SS Housing

Product Description:

The Water Pressure Sensor is available in a range of output signals to suit different applications. The sensor can output signals in 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, and RS485 formats. This makes it compatible with a wide range of systems, including PLCs, microcontrollers, and other control systems. The sensor is also compatible with a range of media, including water, air, gas, and steam. This makes it suitable for use in a range of applications, such as oil pressure sensors, air pressure sensors, and vacuum pressure sensors.

The Water Pressure Sensor is designed to operate in a wide range of temperatures, from -40℃ to 125℃. This makes it suitable for use in harsh environments, such as those found in industrial applications. The sensor is designed to provide accurate and reliable measurements, even in extreme temperatures and harsh conditions.

The Water Pressure Sensor is a high-quality sensor that is designed for use in a variety of applications. It is easy to install and can be integrated into a wide range of systems. The sensor is designed to provide accurate and reliable measurements, even in the most challenging environments. Whether you need to measure water pressure in an industrial setting or in an automotive application, the Water Pressure Sensor is an excellent choice.

Features:

• Product Name: Water Pressure Sensor
• Pressure range: 10kpa, -100kpa...70Mpa
• Operating temperature: -40~125 ℃
• Applications: Water Air Refrigerant HVAC, Automobile
• Output signal: 4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485
• Accuracy: 0.5%FS

This air pressure sensor, also known as a pressure sensor or pressure transducer, is ideal for use in a variety of applications such as water air refrigerant HVAC and automobiles.

Applications:

The WNK water pressure sensor is versatile and can be used in a variety of different applications. Its power supply can be 3.3V, 5Vdc, 12V, or 8-32VDC, making it suitable for use in a wide range of environments. The housing material is made of either 304SS or 316SS, which makes it resistant to corrosion and durable enough to withstand harsh conditions. The measured media for this sensor includes water, air, gas, and steam. It has an IP65 rating, which means it is protected from dust and water ingress, making it suitable for use in wet and dusty environments.

The WNK water pressure sensor is ideal for use in applications where accurate pressure measurement is critical. It is suitable for use in water treatment plants, where the pressure of the water needs to be carefully monitored to ensure that it is being treated correctly. It is also suitable for use in irrigation systems, where the pressure of the water needs to be carefully controlled to ensure that crops are receiving the correct amount of water. Additionally, the WNK water pressure sensor can be used in manufacturing processes where pressure needs to be monitored to ensure that products are being manufactured to the correct specifications.

The WNK water pressure sensor is available in three different pressure types: gauge pressure, absolute pressure, and sealing pressure. This makes it suitable for use in a wide range of applications where different types of pressure measurement are required. Overall, the WNK water pressure sensor is a high-quality product that is suitable for use in a wide range of applications where accurate pressure measurement is required.

Support and Services:

The Water Pressure Sensor product provides the following technical support and services:

- Installation assistance

- Troubleshooting guidance

- Product documentation and manuals

- Repair and replacement services

- Calibration services

- Technical consultation with experts

Packing and Shipping:

Product Packaging for Water Pressure Sensor:

• The water pressure sensor will be securely packaged in a box with protective foam inserts.
• The box will be labeled with the product name, model number, and any necessary warnings.

Shipping Information for Water Pressure Sensor:

• Shipping will be handled by our trusted carriers.
• Orders will typically be shipped within 1-2 business days.
• Delivery time will vary depending on the shipping destination.
• A tracking number will be provided once the order has shipped.
• We offer free standard shipping within the continental United States.

FAQ:

Q: What is the brand name of the water pressure sensor?

A: The brand name of the water pressure sensor is WNK.

Q: What is the model number of the water pressure sensor?

A: The model number of the water pressure sensor is WNK81ma.

Q: Where is the water pressure sensor manufactured?

A: The water pressure sensor is manufactured in China.

Q: Is the water pressure sensor certified?

A: Yes, the water pressure sensor is certified CE/ROHS.

Q: What is the minimum order quantity for the water pressure sensor?

A: The minimum order quantity for the water pressure sensor is 1.

Q: What is the price of the water pressure sensor?

A: The price of the water pressure sensor is $25.

Q: What is the delivery time for the water pressure sensor?

A: The delivery time for the water pressure sensor is 5 days.
