Nbr Sealing M12 Pt100 Water Pump Temperature Switch

PT100 Water Pump Temperature Switch

M12 Water Pump Temperature Switch

NBR Sealing Digital Temperature Switch

Place of Origin:

Hefei, CN

Brand Name:

WNK

Certification:

Model Number:

STS

Request A Quote

Nbr Sealing M12 Pt100 Water Pump Temperature Switch

Product Details

Temperature Range:

-50...200C~260C

Input:

Pt100, Pt1000

Process Connection:

G 1/2 M12(5pin,8pin)

Analog Output:

4-20ma

Digital Output:

PNP, NPN

Analog Accuracy:

0.5%FS

Sealing:

NBR

Working Temperature:

-30-80C

Display:

OLED

Highlight:

PT100 Water Pump Temperature Switch

M12 Water Pump Temperature Switch

NBR Sealing Digital Temperature Switch

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Negotiable

Packaging Details

Sea-Worthy Packing or Air-Worthy Packing

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union

Supply Ability

5000pcs per month

PT100 Electronic Digital Temperature Switch With PNP + 4~20mA + Modbus Output

Get Best Price

OLED Display Type Electronic Digital Temperature Switch And Transmitter

Get Best Price

4-20ma PT100 PT1000 Electronic Digital Temperature Switch

Get Best Price

Nbr Sealing M12 Pt100 Water Pump Temperature Switch

Get Best Price

86-551-65369655

Contact Now

Product Description

PT100 PT1000 Temperature Switch Water Pump Temperature Switch

Description

WNK temperature switch (STS) is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. The STS provides optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Specifications

Product name	Electronic Smart Temperature Switch
Measuring range	-50260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s

Feature:

Support PT100 or PT1000 input
Current output is 4~20mA+2PNP+MODBUS; voltage output is 0~5V/10V+ 2PNP+ MODBUS
Switching points settable
Analog output span settable
OLED self-luminous display
Display reversing 180°
Switching can be set normally open / normally closed
Housing with electrical connection against process connection rotatable 330°
Displaying temperature peak value and environment temperature
Parameters setting for Password protection
MODBUS protocol optional

Technical Data:

Product name	Electronic Smart Temperature Switch
Measuring range	-50260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s

Ordering sheet:

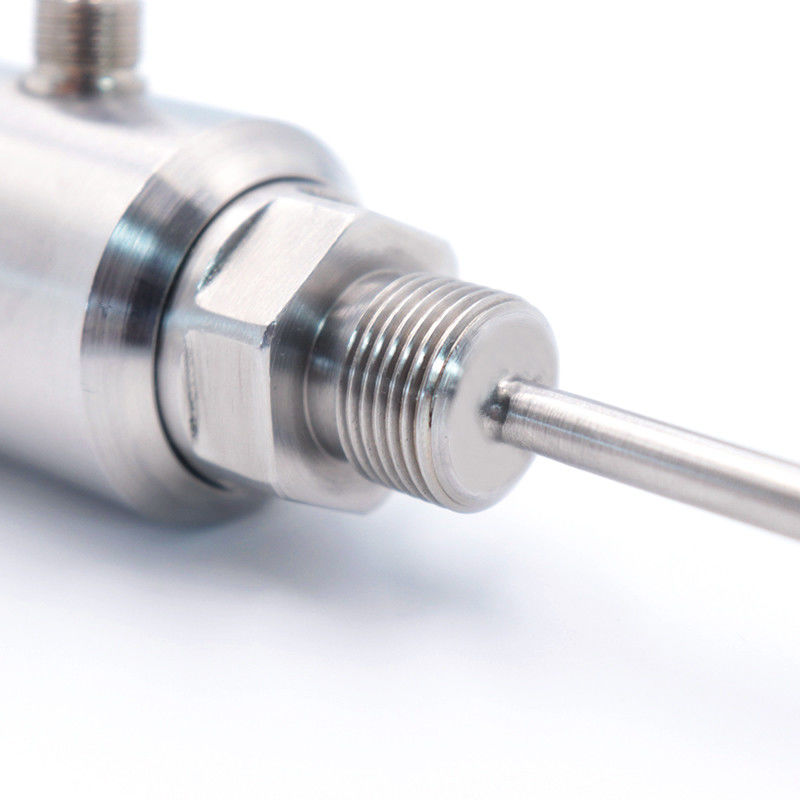

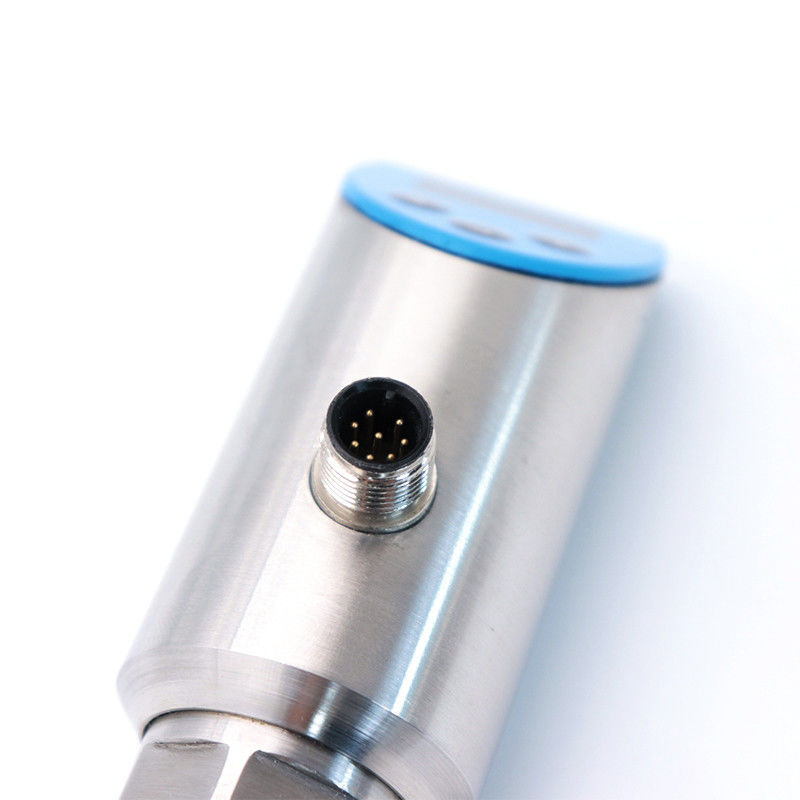

Product Show

Nbr Sealing M12 Pt100 Water Pump Temperature Switch 1
