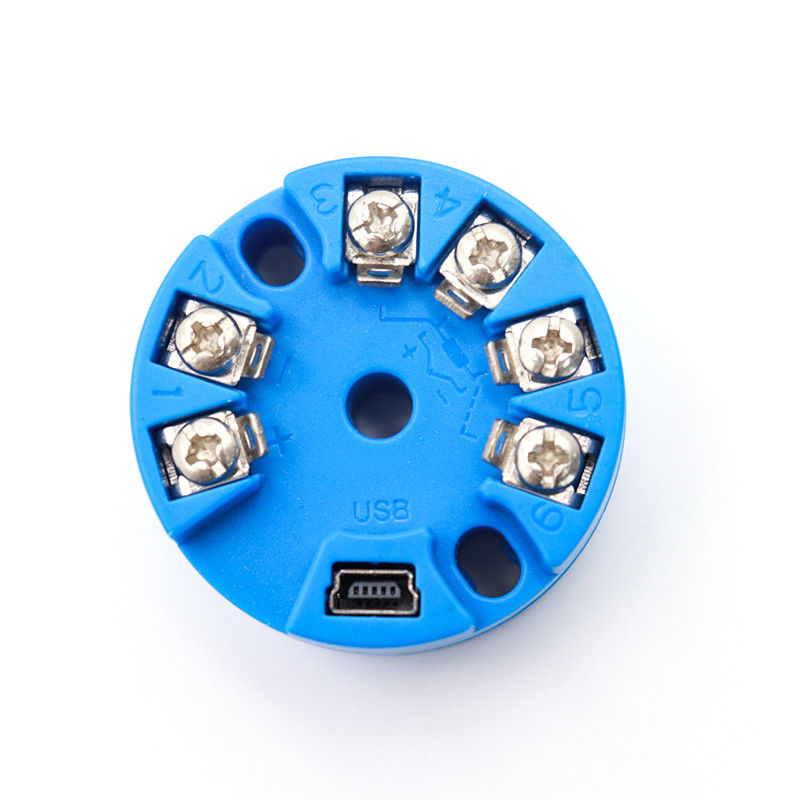

4-20MA Hart RTD PT100 PT1000 Liquid Gas Temperature Transmitter Module
Product Description
Universal Input Isolation Smart Temperature Transmitter
WNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and-100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.
1. Supply power:DC9V~32V;
2. Output signal 4-20mA with HART protocol digital communication ( two-wire ), HART communication does not influent 4-20mA
analog output;
3. Communicator or PC configuration and debugging software can do remote management;
4. Code end compensation of thermalcouple can choose internal temperature sensor, external temperature sensor, fixed temperature
value and forbide code end compensation;
5. Internal code end compensation accuracy: ±0.5ºC
6. Damp: 0-64 seconds adjustable;
7. Data refreshing frequency: 4times/second;
8. Stability: ±0.2%/year;
9. Woring ambient temperature range: -40ºC~+85ºC;
10. Dimensions: φ44mm;
11. Mounting hole distance: 33mm;
12. Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
13. Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ
Product Spec
| Measured media |
Liquid gas steam |
| Output |
4-20ma hart |
| Input |
Thermocouple, RTD,MV,Resistive sensor |
| temperature range |
-40-85C |
| Dimension |
44MM |
| Power supply |
9-32v |
| Housing material |
plastic |
| Stability |
±0.2%/year; |
| Damp |
0-64 seconds adjustable; |
| Accuracy |
±0.5ºC |
